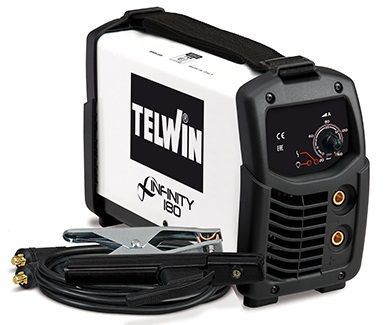

Telwin Electrode Welding Machine, 816081, Infinity 180, 4.5 kW, 20-160A

Model No:

816081

Special Price AED 1,489 Regular Price AED 1,699

Authorised Seller

100% Original

Ready To Ship

Highlights

MMA and TIG inverter, electrode welding machine in direct current (DC) with scratch striking
Use with a wide range of electrodes: rutile, basic, stainless steel, cast iron, etc
Compact and light
High welding current stability in spite of mains voltage fluctuations
Arc force, hot start and anti-stick devices
Thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections. Complete with MMA welding accessories
Max current dc (EN 60974-1): 160A at 35%
DC current: 120A
Max absorbed current: 30A
Absorbed current at 60% - Max: 23A
Max absorbed power: 4.5 kW
Absorbed power at 60%: 3.3 kW
Motorgenerator minium power: 7 kW
Pieces/Pallet: 56 pz/pallet
CABLE 25 MMQ 2 M PLUG ATLAS (25124465), TOLEDO 250 WORK CLAMP 250A (712030), CABLE 25 MMQ 3 M PLUG ATLAS 25 (124466), DALLAS 300 ELECTRODE HOLDER 300A (712260)

For Use With	Electrodes rutile, basic, stainless steel, cast iron, etc.	Welding Current Range - Amps	20-160A
Welder type	50585057	Efficiency	0.9
Voltage	230V	Max No Load Voltage	60V
Amps (A)	120 @60 percent	Measuring Current Range - AC	20-160A
Power	3.3-4.5 kW @60 percent	Power Consumption	4.5 kW
Frequency	50/60Hz	Ingress Protection (IP Rating)	IP23
Application	TIG/MMA	Certification	293750435042
Product Size L x B x H (Cms)	35.4L x 14.5B x 24H
